Product Overview:

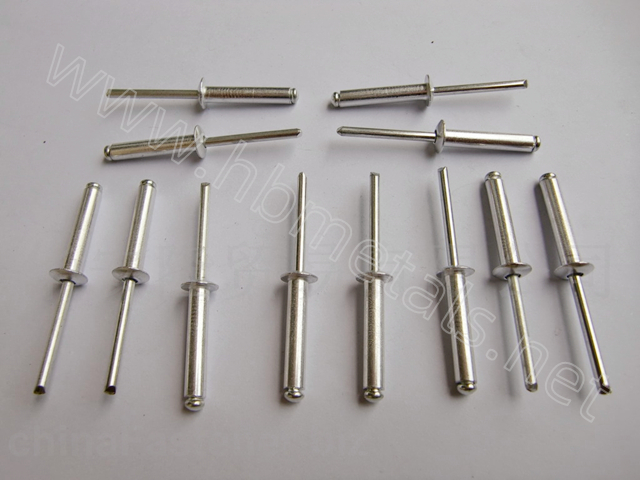

The Professional Blind Rivet (Pop Rivet) is a high-performance, permanent mechanical fastening solution designed for joining thin-gauge sheet metal and plastics in blind-side applications. Engineered for speed, efficiency, and structural reliability, these rivets are the industry standard for automotive assembly, HVAC manufacturing, aerospace, and construction sectors where access is restricted to a single side of the workpiece.
Manufacturing & Technology:
Structural Engineering: Composed of two primary components: the Mandrel (stem) and the Rivet Body (sleeve). Manufactured using High-Precision Cold-Heading Technology, ensuring perfect concentricity and mechanical strength.
Deformation Technology: Upon actuation with a rivet gun, the mandrel is pulled into the rivet body, causing it to buckle and expand on the "blind side" (rear). This creates a high-tension, vibration-resistant joint that compensates for varying sheet thickness.
Surface Engineering: Available in various materials including Aluminum, Stainless Steel (304/316), and Carbon Steel. Surface finishes include Clear Anodization, Passivation, or Electroless Nickel Plating, providing robust resistance against electrochemical corrosion and harsh environmental conditions.
Quality Assurance: Each batch undergoes Shear and Tensile Strength Testing to ensure structural integrity under dynamic load cycles. Precision-engineered breaking points on the mandrel ensure consistent shear performance.

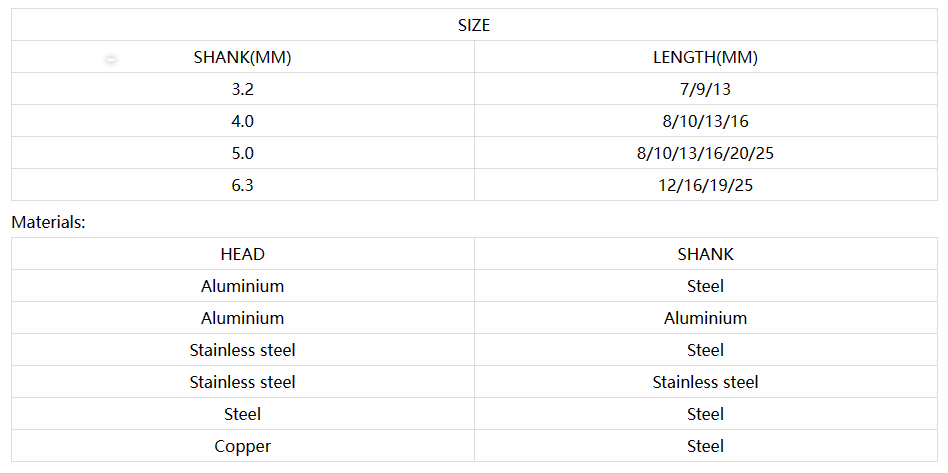

Technical Parameters:
Material: Aluminum alloy, Stainless Steel, Carbon Steel.
Head Style: Dome head, Large flange, Countersunk head.
Diameter Range: 2.4mm – 6.4mm.
Standards: Compliance with ISO 15977, DIN 7337.
